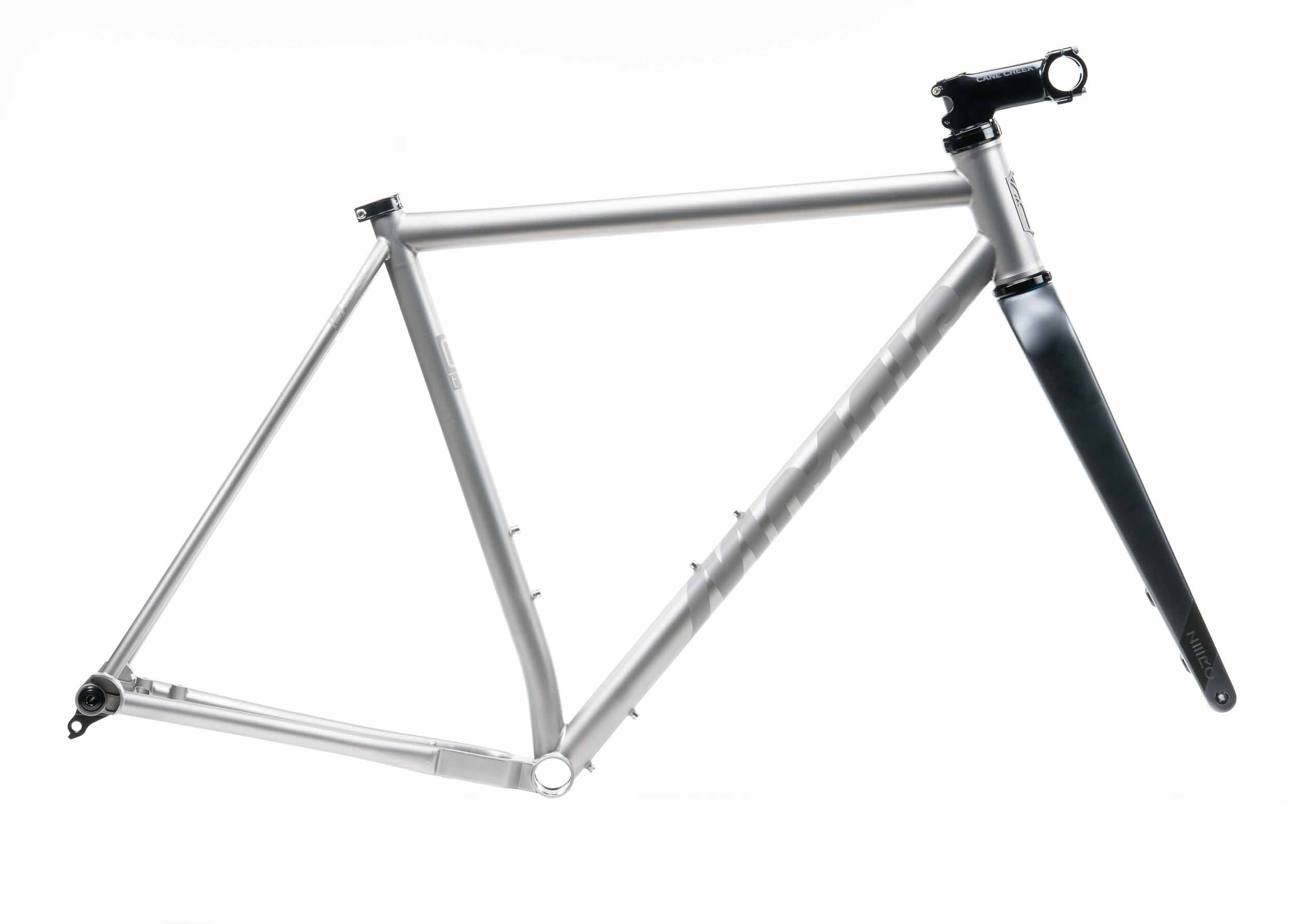

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-02

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-12

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-13

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-11

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-10

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-09

Mosaic Cycles GT-2 i55 Titanium Gravel Bike-14

GT-2 i55 Frameset

Name: GT-2 i55 Frameset
SKU: 8652
Availability: InStock

$4,200.00

Currently the GT-2 i55 is available for pre-order only through August 31st. Framesets will be deliverable late September. Stem and headset shown in photos at extra cost.

Size

Clear

SKU: N/A Category: Batch Built Frames Tag: Batch Built

GT-2 i55: Go Bigger. Ride Harder. Demand the best.

The GT-2 i55 is available in our Batch Built program finished in Ghost raw titanium, in eight standard sizes. Cane Creek HRC headset and stem are available for internal front end cable routing. Enve Carbon cockpit is also available at additional cost

The Mosaic GT-2 i55 is now available through our batch built program. Finished in Ghost. For the new model, pre-orders on all sizes can be made on backorder through August 31st, full frameset delivery end of September. For more information on the GT-2 i55 visit our model page

T3A/2.5V Straight Gauge Titanium Tubeset
Batch Built Standard Geometry, 8 sizes
700x55mm Tire Clearance
Mosaic Gravel Fork, suspension corrected
Headset not included with frame (available at additional cost
44mm Headtube
27.2 Seatpost Diameter
50t Chainring clearance, 1X gravel chainline only, (will not fit a road crankset)
Flat Mount 140mm native Brake Mounts, 160 with adapter
Internal Di2 or Wireless AXS shift routing only
Ghost Titanium Finish
Internal front and Downtube Brake Routing
12×100 Front // 12×142 Rear

Our Batch Built program pairs Mosaic’s high quality craftsmanship with in stock availability for riders that want a quick delivery and a standard sizing.

If standard size and finish are not enough, our Made to Order frames have nearly infinite personalization through custom geometry and finish work options, all deliverable in 6-8 weeks. Reach out to us here and we can help you get started on your dream build.

Frame Size	XS	SML	SML-MED	MED	LRG	XL	XXL	3XL
Frame Size	48	50	52	54	56	58	60	62
HT Angle	70	70.5	71	71	71	71	71	71
ST Angle	73	73	72.5	72	71.5	71.5	71	71
ST Length (C-T)	480	500	520	540	560	580	590	600
TT Length (Eff)	519.3	530.3	540	550	570	585	600	610
HT Length	90	95	110	120	130	155	175	200
Wheelbase	1022	1029	1030	1035	1050	1065	1074	1084
Chainstay Length	430	430	430	430	430	430	430	430
Fork Offset (Rake)	55	55	55	55	55	55	55	55
Front Center	605.1	611.6	612.2	617.3	632.1	647.2	656.7	666.6
Trail	74.9	71.4	68	68	68	68	68	68
Standover	777.9	788.4	803.1	816.6	830.1	849.2	862.7	877
BB Drop	80	80	80	80	80	80	80	80
BB Height	286.5	286.5	286.5	286.5	286.5	286.5	286.5	286.5
TT Angle	9.98	7.68	6.76	5.65	4.52	4.42	5.43	6.34
Stack	543.6	550.2	566.4	575.9	585.3	609	627.8	651.5
Reach	372.5	381.5	381.3	383.2	394.9	401.9	405	406.8
