$4,200.00

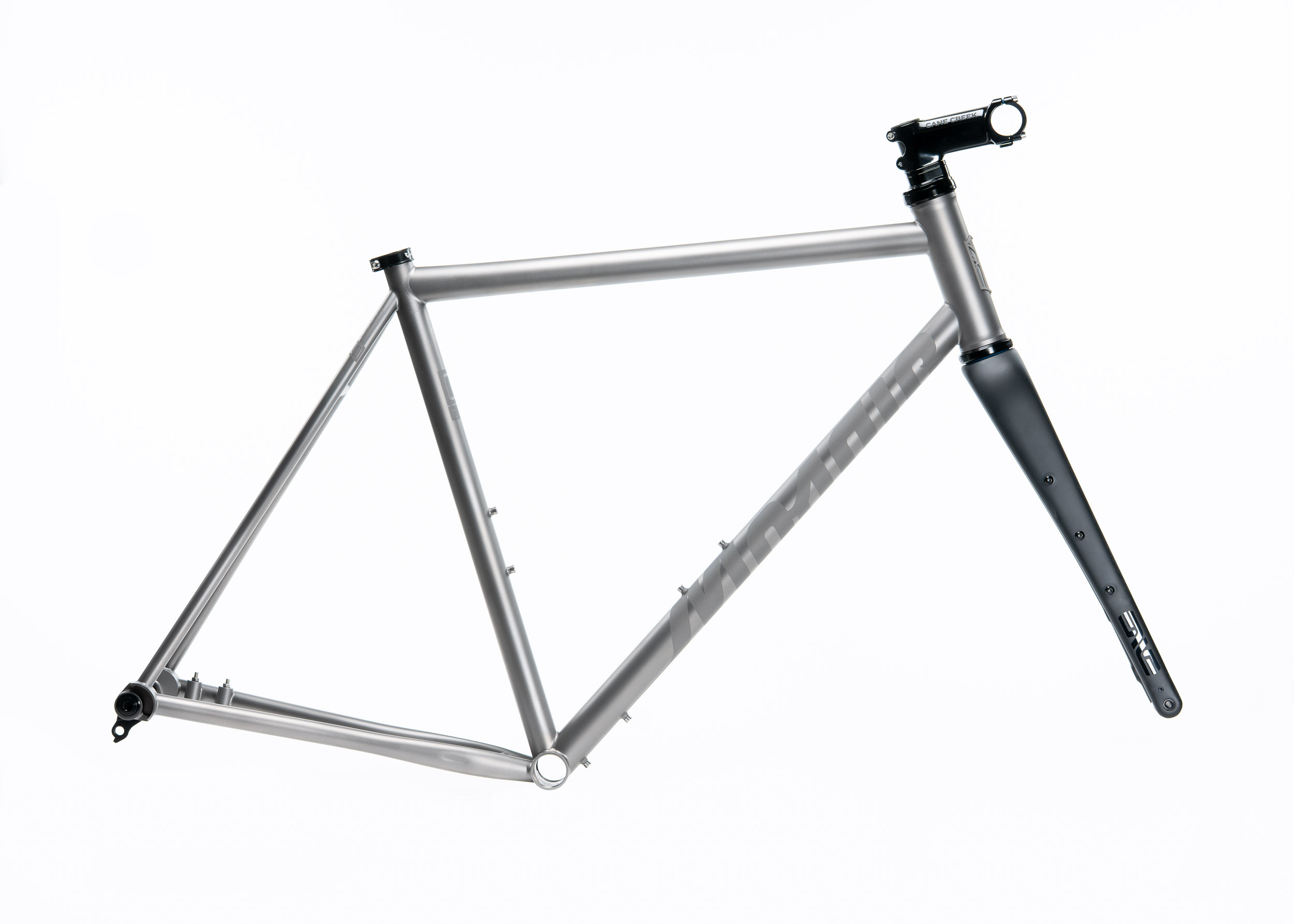

Straight Gauge Titanium Gravel frameset

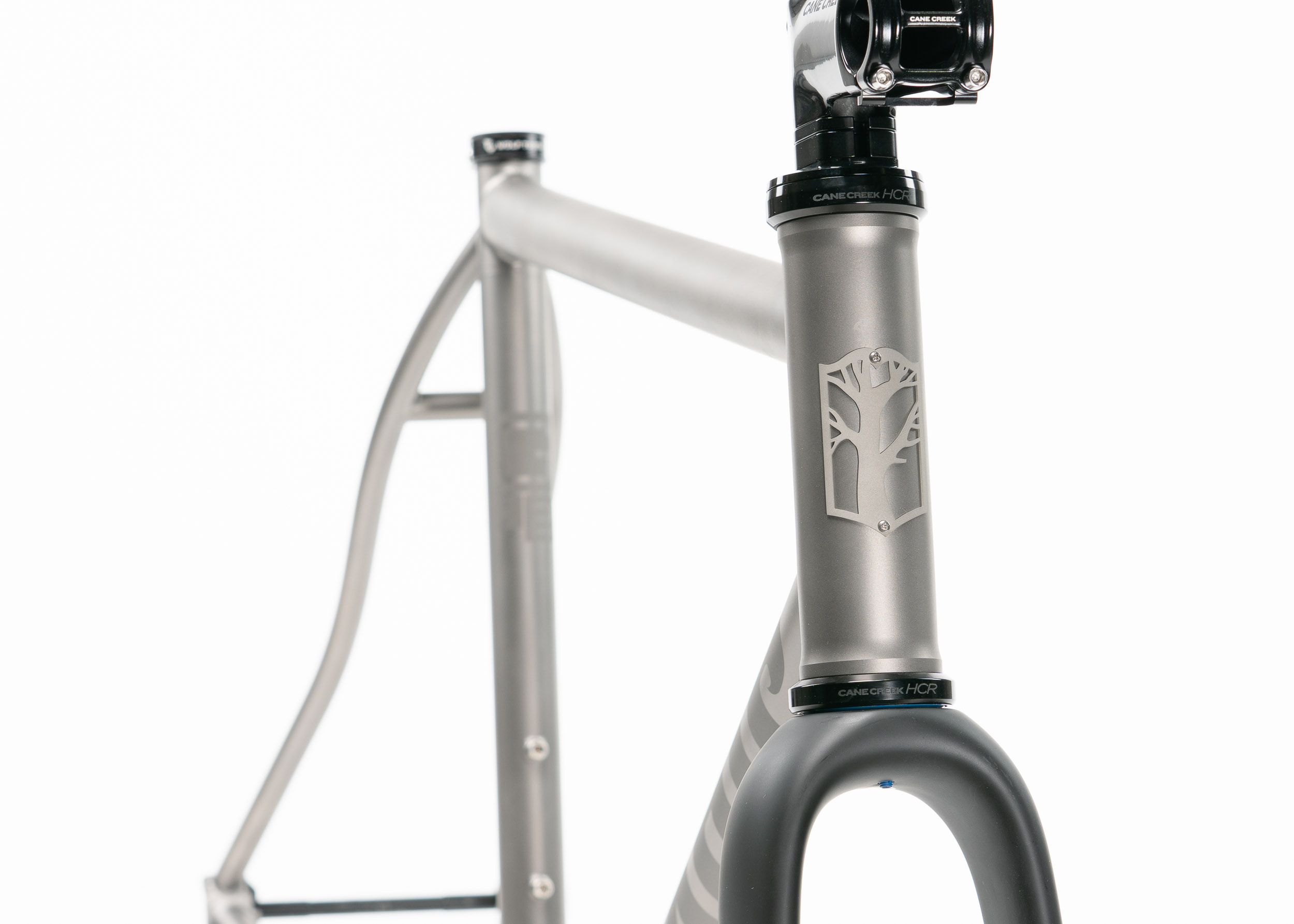

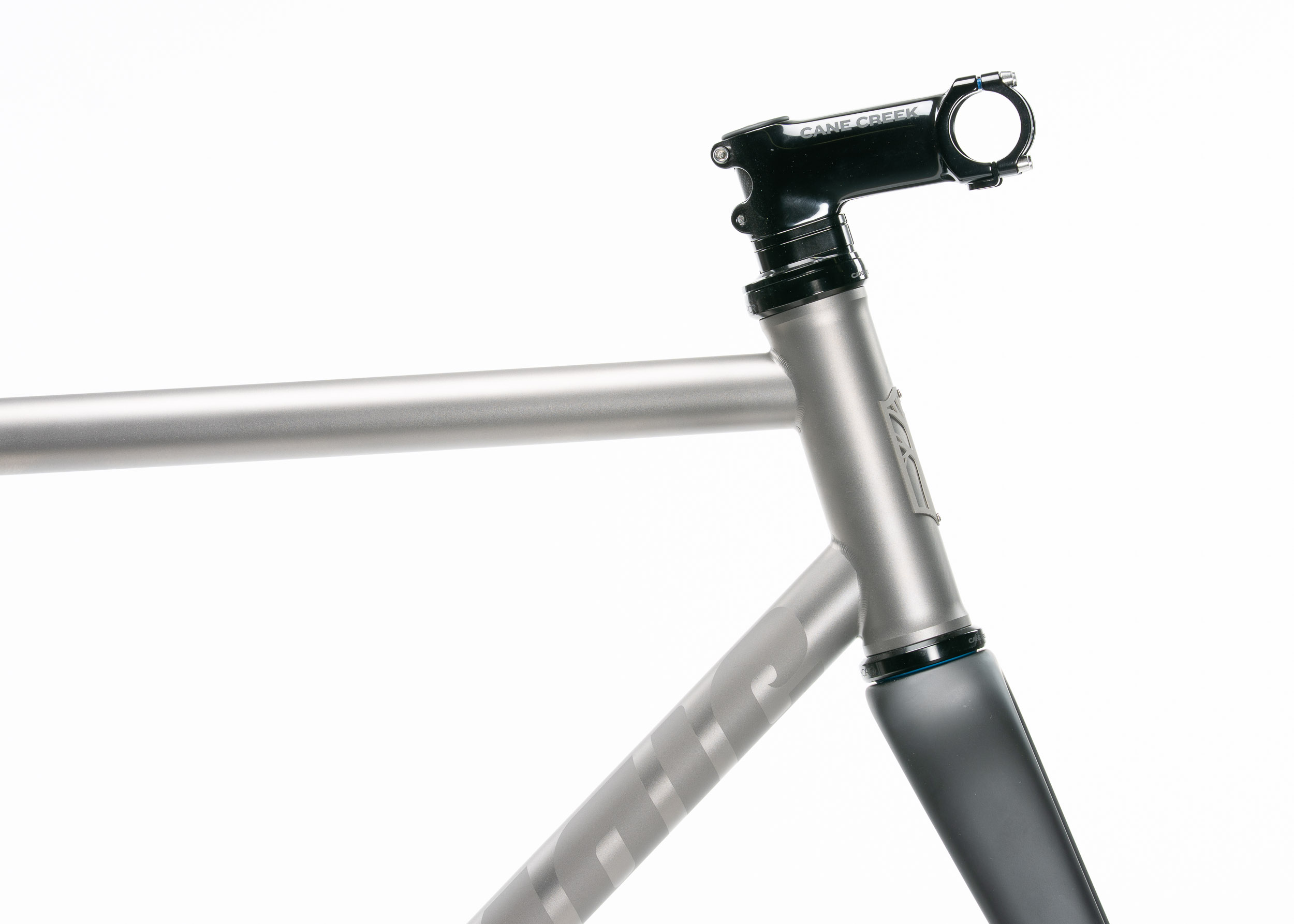

The GT-2 i45 is available in our Batch Built program finished in Ghost raw titanium, in eight standard sizes. Cane Creek HRC headset and stem are available for internal front end cable routing. Enve Carbon cockpit is also available at additional cost
see stock for size availability
Our Batch Built program pairs Mosaic’s high quality craftsmanship with in stock availability for riders that want a quick delivery and a standard sizing.
In stock frames are ready for delivery within 3 days. If an item is not in stock it can be placed on backorder for a 3-5 weeks delivery
If standard size and finish are not enough, our Made to Order frames have nearly infinite personalization through custom geometry and finish work options, all deliverable in 6-8 weeks. Reach out to us here and we can help you get started on your dream build.
| Frame Size | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|---|
| HT Angle | 70.3 | 70.3 | 70.3 | 70.5 | 70.8 | 71 | 71.3 | 71.3 |
| ST Angle | 74.5 | 74.5 | 74 | 73.5 | 73 | 73 | 72.5 | 72.5 |
| ST Length (C-T) | 480 | 500 | 520 | 540 | 560 | 580 | 590 | 610 |
| TT Length (Eff) | 526 | 535.6 | 545 | 555 | 575 | 590 | 605 | 615 |
| HT Length | 100 | 115 | 135 | 145 | 155 | 175 | 195 | 220 |
| Wheelbase | 1026 | 1038 | 1043 | 1047 | 1060 | 1071 | 1079 | 1094 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 | 435 | 440 |
| Fork Offset (Rake) | 55 | 55 | 55 | 55 | 55 | 53 | 53 | 53 |
| Front Center | 602 | 613.6 | 619 | 623 | 636 | 646.7 | 654 | 665 |
| Trail | 68 | 68.1 | 68 | 66 | 67 | 65.3 | 65 | 65 |
| Standover | 753 | 771.7 | 793 | 805 | 824 | 838.8 | 856 | 875 |
| BB Drop | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| BB Height | 278 | 277.5 | 278 | 278 | 283 | 277.5 | 283 | 283 |
| TT Angle | 8.2 | 8 | 7.5 | 6.9 | 5.8 | 6 | 6.6 | 6.4 |
| Stack | 530 | 544.1 | 563 | 573 | 584 | 604.6 | 625 | 648 |
| Reach | 376 | 382.1 | 381 | 383 | 396 | 403.9 | 408 | 410 |
